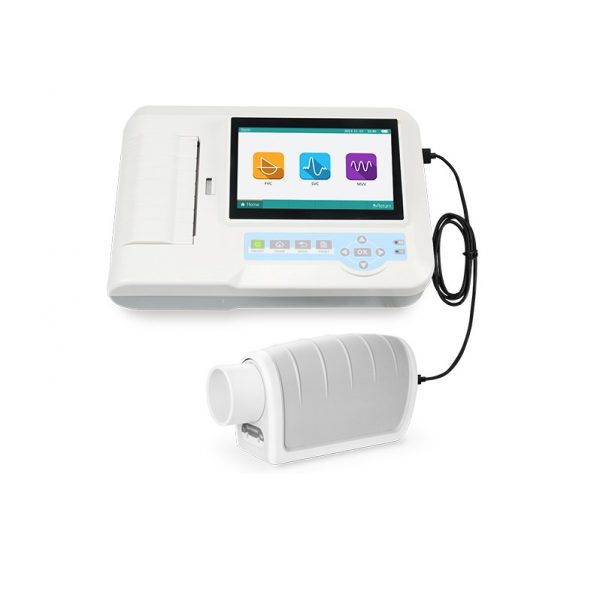

Spirometer SP100 desk type
R13,700.60 Inc VAT
SP100 Spirometer is a portable lung function testing device, which mainly used to examine lung function related parameters for patients. It can be applied to
various environments such as in hospitals, clinics, etc. And it is also suitable for communities, schools, factories and other places to conduct epidemiological
investigation, health examination, occupational disease screenings
Spirometer SP100 desk type
Spirometer SP100 Features:
- Measurement of Forced Vital Capacity (FVC), Vital Capacity (VC/SVC). maximum voluntary ventilation (MVV) and relevant functions, more than 30 parameters can be measured and displayed; for several times of measurement, the optimal result will be displayed; the condition of subject can be shown by the ratio of the measured value and the predicted value.
Spirometer SP100 Measurement parameters:
- Forced Vital Capacity (FVC): FVC, FEVI, PEF, FEV1%, (FEV1/FVC), FEF25, FEF50,
- FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIVI,
- FIV1/FIVC, PIF, MW
- Vital Capacity VC/SVC): VC, IC, ERV, IRV, EVC, INC, TV, VE, RR, 11, 1E, TV/HI,
- fi/ttot
- Maximum Ventilatory Volume MVV): MW
- Real-time display respiration waveform:Flow-Volume loop and Volume-Time curve chart.
- 7″ color LCD touch screen, buttons can be operated along with touchscreen
- Incentive animation operation guide, easy for the use between children and the old
- Built-in thermal printer, reports can be printed directly.
- BTPS automatic correction function, compensate for the impact of environmental differences,
- Test time and environment temperature display.
- Calibration function, ensure measurement accuracy,
- Multiple predicted value can be selected, suitable for different population;
- Storage of more than 10,000 groups of data;
- Lung age estimation function;
- Built-in lithium battery, supports both of AC and DC.
Spirometer SP100 Performance:
- Volume range : + 10L
- Volume accuracy: + 3% or +0.05 Llwhichever is greater)
- Flow Range: + 16 L/S
- Flow accuracy: +5% or 0.2 Us whichever is greater)
- Power supply: 100V-240V – 50/60Hz
- Input power: 60 VA
- Safety type: Class I equipment, type BF applied part
- LCD screen: 7″ color TFT touch screen
- Printing paper: 112 mm(W) x 20 mll) high-speed thermal paper
Click here to read more about Nebulizer.
