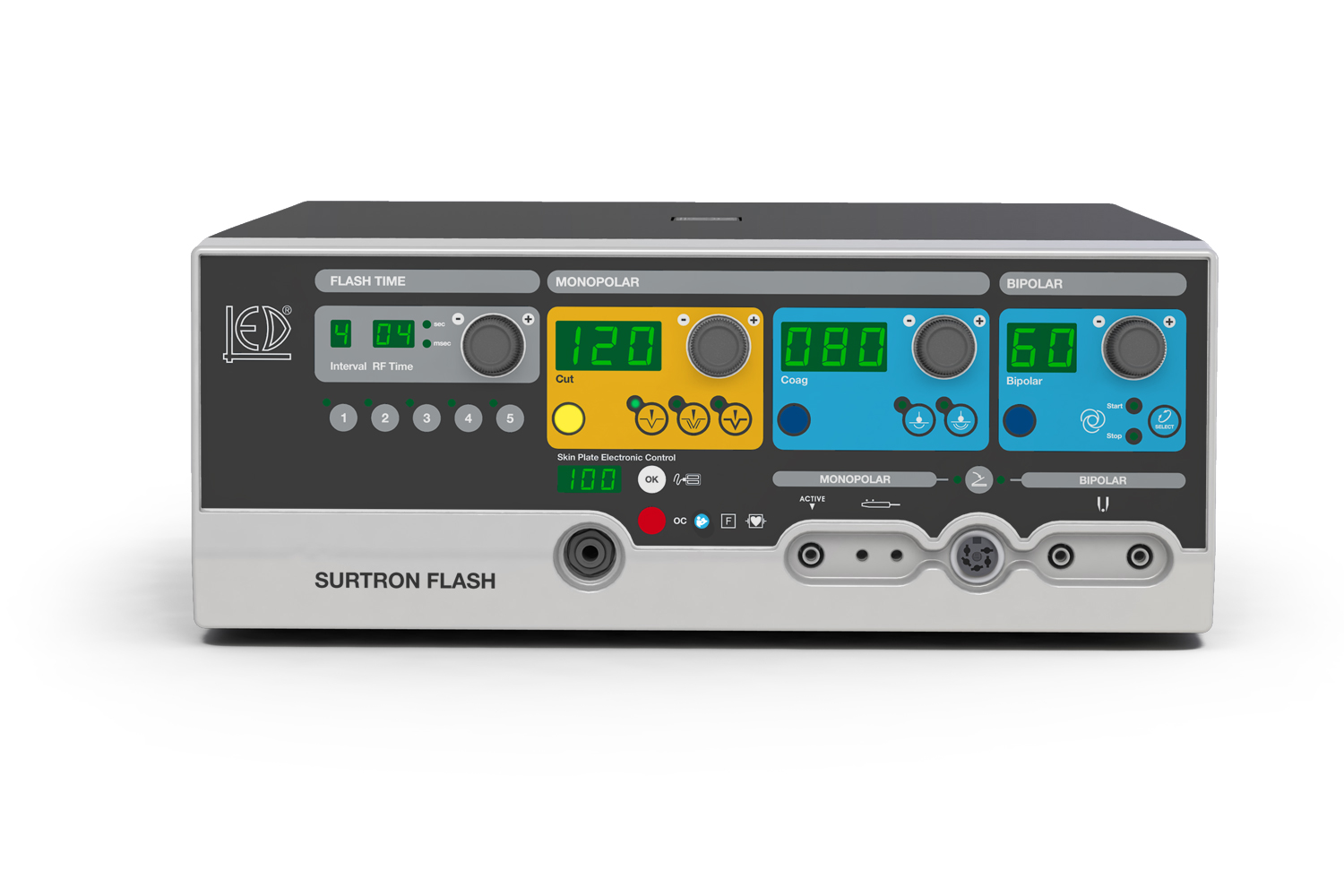

Diathermy 120W Flash

The SURTRON FLASH 120 is an advanced electrosurgical device designed for precision in both monopolar and bipolar surgery, including micro-surgery, without altering surrounding tissues.

Key Features:
Programmable RF Power: Capable of delivering RF power for programmable durations as brief as fractions of a second.

Versatile Modes:

Pure Cut (CUT): Maximum output of 120 W at 250 Ω for clean incisions.
Cut-Coagulation (BLEND): Offers 90 W at 200 Ω for combined cutting and coagulation.
Enhanced Cutting (ENHANCED): Reduces eschar formation with a maximum of 90 W at 250 Ω.
Superficial Coagulation (FORCED COAG): Up to 80 W at 150 Ω for effective surface treatment.
Deep Coagulation (SOFT COAG): 60 W at 100 Ω, minimizing necrosis during deeper procedures.
Bipolar Coagulation (BIPOLAR): Provides 60 W at 50 Ω for precise coagulation.
Ablation: Additional capability for targeted tissue removal.
Digital Power Monitoring: A microcontroller oversees operational functions, ensuring reliable working conditions.

User-Friendly Design: Ergonomically designed for safety and ease of use, allowing surgeons to maintain focus on the surgical field without distraction.

Continuous Monitoring: The connection of the neutral electrode is constantly checked, and patient-to-plate contact safety is enhanced with a split neutral electrode design.

Technical Specifications:
Max Output Power:
CUT: 120 W at 250 Ω
BLEND: 90 W at 200 Ω
ENHANCED: 90 W at 250 Ω
FORCED COAG: 80 W at 150 Ω
SOFT COAG: 60 W at 100 Ω
BIPOLAR COAG: 60 W at 50 Ω
Working Frequency: 600 kHz
RF Power Pulse Emission Time: 10 ms to 30 seconds
RF Power Pulse Interval: 1 to 9
Patient Circuit: F
Input Voltage: Selectable 115-230 Vac
Mains Frequency: 50-60 Hz
Electrical Input Power: 300 VA
Dimensions: 370 x 144 x 319 mm
Weight: 6 kg
Controls and Safety Features:
Controls:

Patient circuit monitoring
Emitted power control
Self-diagnostic capabilities
Safety Certifications:

Complies with EN60601-1, EN60601-1-2, and EN60601-2-2 standards
Electrical classification: CF
MDD 93/42/EC classification: II b
Additional Information:
A digital in-service video is available to demonstrate the setup and operation of the LED SURTRON 120 Diathermy machine for both monopolar and bipolar configurations, ensuring users are well-prepared for surgical applications.
